A Quantum Leap in Deburring: Dry Ice Blasting Secures the Future of Medical Implants

From Titanium to 3D Print: How do you deburr the most delicate medical parts with ultimate precision? Dive into the world of dry ice blasting, the non-abrasive solution for orthopedic implants, micro-instruments, and more. A must-read for anyone serious about quality in medical technology!

Cold Jet GmbH
Weinsheim, Germany

In the demanding world of medical technology, the highest quality standards are not just desirable, but absolutely crucial. Especially in the manufacturing of orthopedic implants, medical device components, and 3D-printed medical implants, deburring is a critical step that demands absolute precision and surface integrity. Here, dry ice blasting offers an innovative, non-abrasive solution that outperforms traditional methods.


What is Dry Ice Blasting and Why is It Ideal for Medical Technology?

Dry ice blasting uses solid carbon dioxide (dry ice), which is propelled at high pressure onto the surface to be treated. Upon contact, the dry ice immediately sublimates, meaning it transforms directly from a solid to a gaseous state. The special feature: no residues are left on the treated parts. This residue-free process, combined with the non-abrasive nature of dry ice blasting, makes it the ideal method for sensitive medical applications.

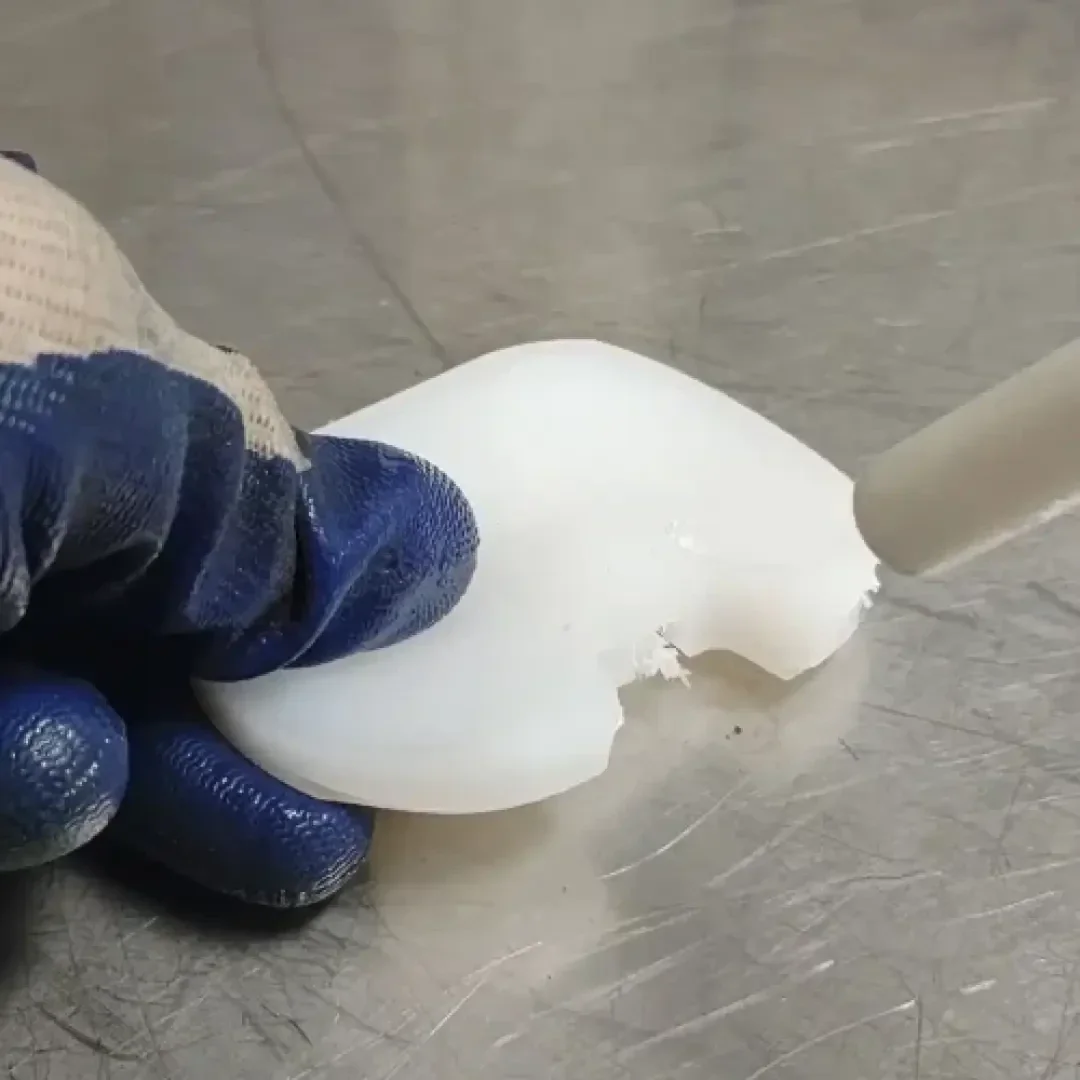

Precision for Orthopedic Implants: No Room for Burrs

Orthopedic implants, such as knee or hip prostheses, must be perfectly manufactured to function optimally within the human body and prevent complications. Even the smallest burrs can lead to issues, from reduced patient comfort to material fatigue or inflammation.

Dry ice blasting enables gentle yet highly effective deburring of these complex parts. It precisely removes unwanted material residues without affecting the delicate surface finish or the exact geometries of the implant. Manufacturers benefit from reduced post-processing times and consistently high quality that manual deburring can hardly achieve.

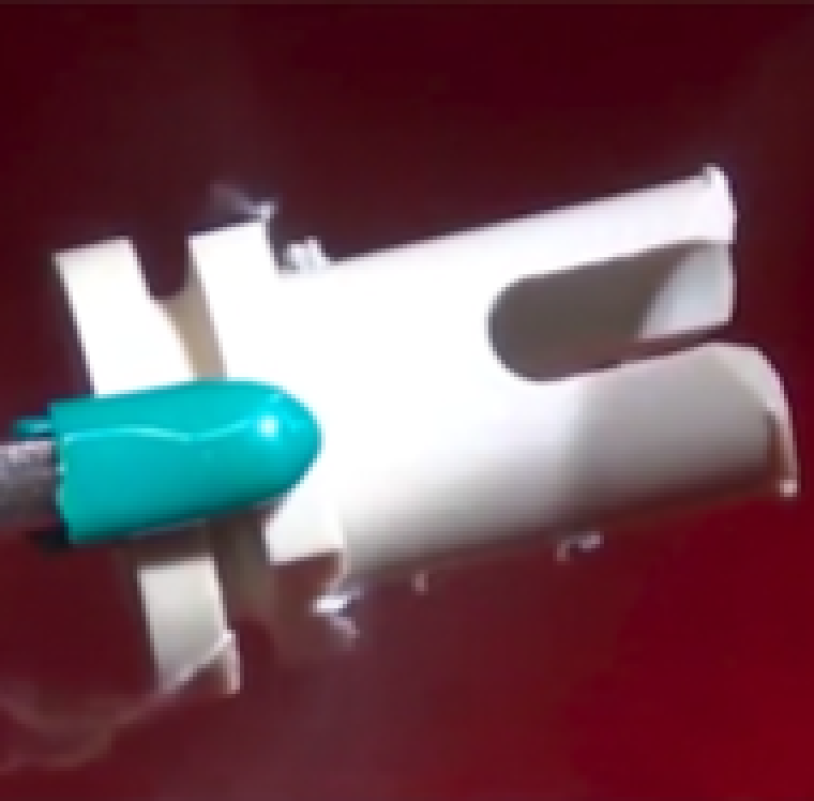

A close-up of a medical instrument with a teal-colored tip touching a white plastic component, set against a red background. Thin wisps of vapor or smoke are visible around the contact area.


Medical Device Components: Complexity Meets Cleanliness

From surgical instruments to catheter tips and complex manifolds, medical device components often require micro-fine structures and tight tolerances. Traditional deburring methods can quickly reach their limits here, damaging tiny details or leaving abrasive residues that risk cross-contamination.

With dry ice blasting, even complicated internal channels and hard-to-reach areas can be precisely deburred and cleaned. The method is so finely controllable that it flawlessly processes even the most sensitive components made of materials like PEEK, nylon, or stainless steel, without impairing their functionality. No media entrapment means maximum safety and purity.

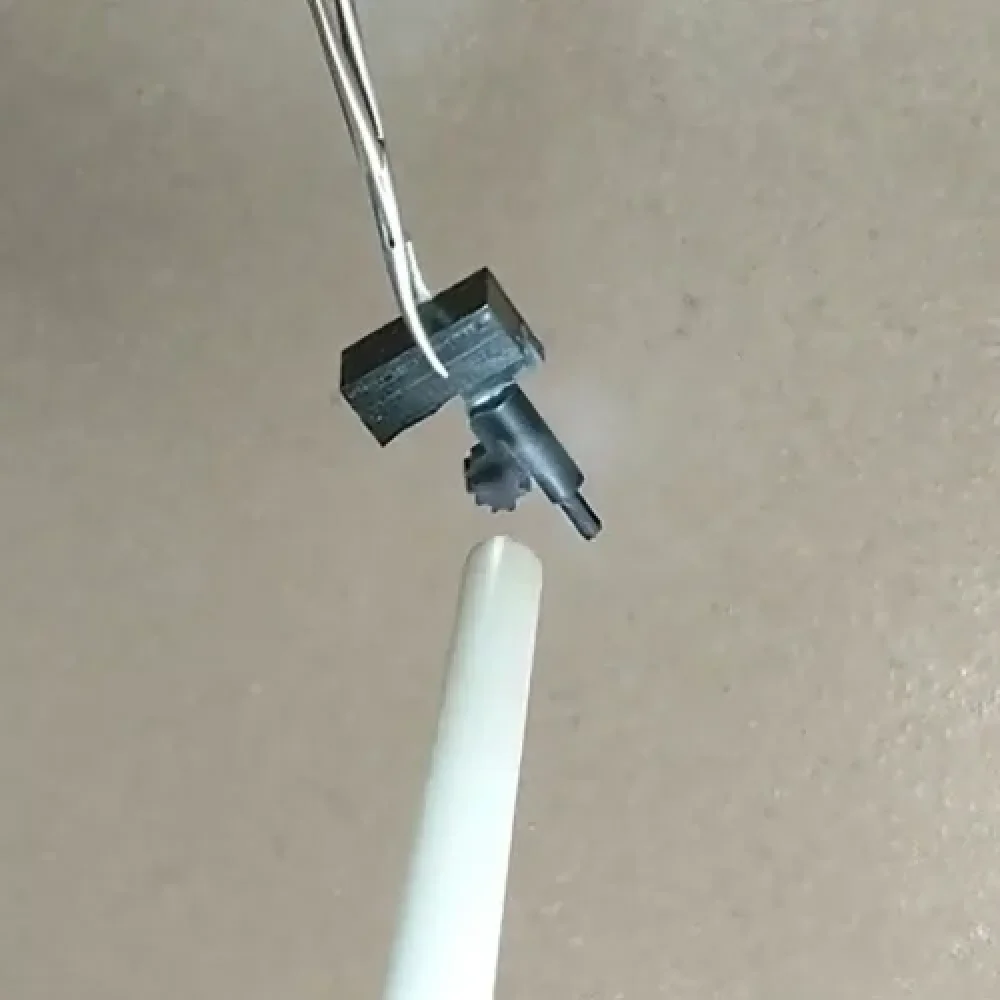

Close-up of tweezers holding a small black plastic gear above the tip of a white cylindrical object, against a plain beige background.


3D-Printed Medical Implants: Post-Processing on the Next Level

3D printing is revolutionizing the manufacture of personalized medical implants. However, the printing process often creates fine burrs or unwanted surface structures that need to be removed. Especially with additively manufactured components, post-processing is a challenge because the delicate lattice structures and complex shapes are difficult to access.

Dry ice blasting offers the perfect solution for deburring 3D-printed medical implants. The dry ice particles can penetrate into the finest gaps and remove burrs without damaging the sensitive printed structure. This is crucial to ensure the biocompatibility and mechanical integrity of the implants.

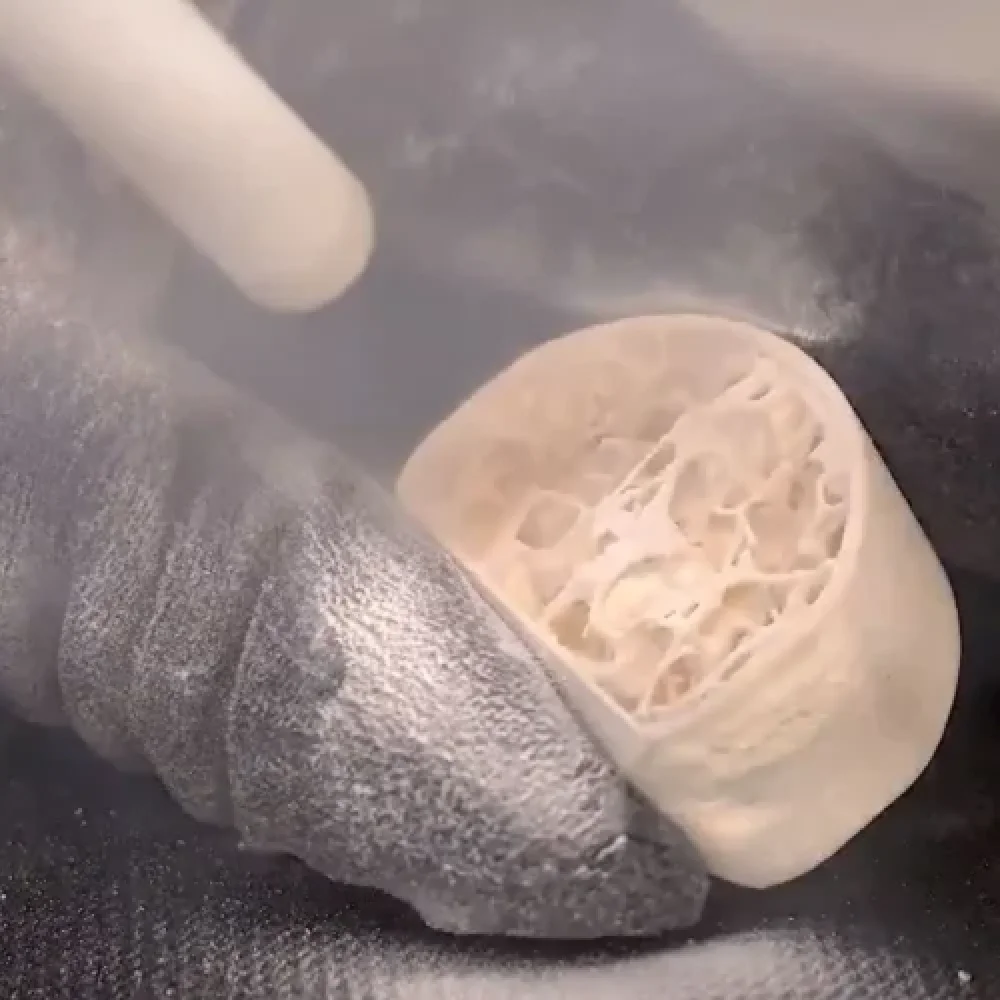

A gloved hand holds a round, cross-sectioned bone while a tool smooths its surface, producing a cloud of fine white dust.


Diverse Materials, One Solution

The versatility of dry ice blasting is also evident in the wide range of materials that can be processed. These include:

  • Plastics: PBT, Acetal, Nylon, LCP, ABS, PP, PEEK

  • Metals: Titanium, Stainless Steel, Nitinol

  • Additively Manufactured Components (3D-printed parts)

Dry ice blasting thus represents a reliable and cost-effective method for meeting the highest quality requirements in medical technology and optimizing the production of high-quality and safe medical products.
